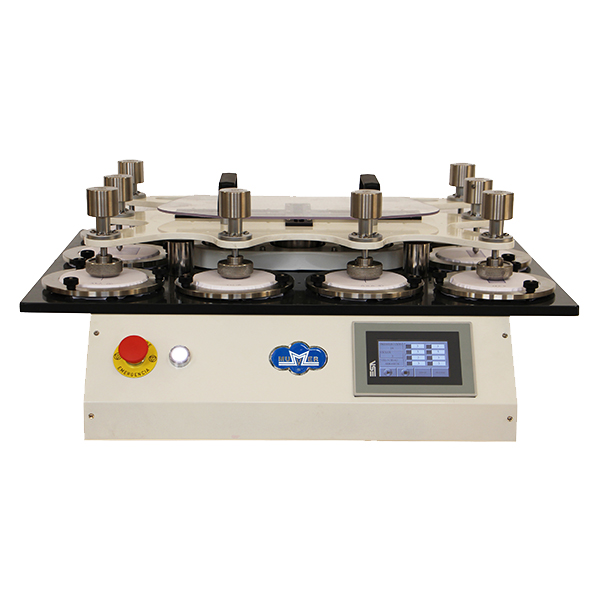

Martindale abrasionmeter

Martindale abrasionmeter

REFERENCE 5066

Machine for testing the abrasion resistance of leather, insole for footwear, cloth linings for footwear, gloves and protective clothing.

EN ISO 20344, EN 388, EN ISO 12947-1, EN ISO 17076-2, EN 13520, EN ISO 26082-1*, EN 530, VDA 230-211 and PV3968
  • 4 or 8 Test positions.
  • Stainless steel base plates of 121 ± 0,5 mm.
  • Speed 48 ± 2 cycles for minutes.
  • Total surface of friction 60,5 mm.
  • Test surface of the test-piece holders 28,65 ± 0,25 mm.
  • Combined mass of the test-piece holders 795 ± 7g and 595 ± 7g
  • Weight: 2.5 ±5 kg, 120 ± 10 mm in diameter.
  • Necessary cycles to complete the figure of Lissajous: 16.
  • Preselector meter with digital programming or tactile terminal with individual meter (8 positions option).
  • Working voltage 220V 50/60 Hz.
  • Balls plate, 4 units (optional).
  • Available options:
    • 5066: Equipment with 4 test positions.
    • 5066-2: Equipment with 4 test positions. Abrasion and pilling test.
    • 5066-A: Equipment with 8 test positions.
    • 5066-2A: Equipment with 8 test positions. Abrasion and pilling test
